Hydrocyclone Filters for Irrigation
GAJANAND HYDROCYCLONE is a mechanical device designed to reduce, or increase the concentration of a dispersed phase, liquid by classifying, separating or sorting sand particles from a liquid suspension based on the ratio of their centripetal force to fluid resistance.
Hydro cyclone Filters for Irrigation efficiently remove sand, silt, and heavy particles from water. Designed with a conical body and no moving parts, these filters ensure reliable performance, minimal maintenance, and improved protection for drip and sprinkler irrigation systems.

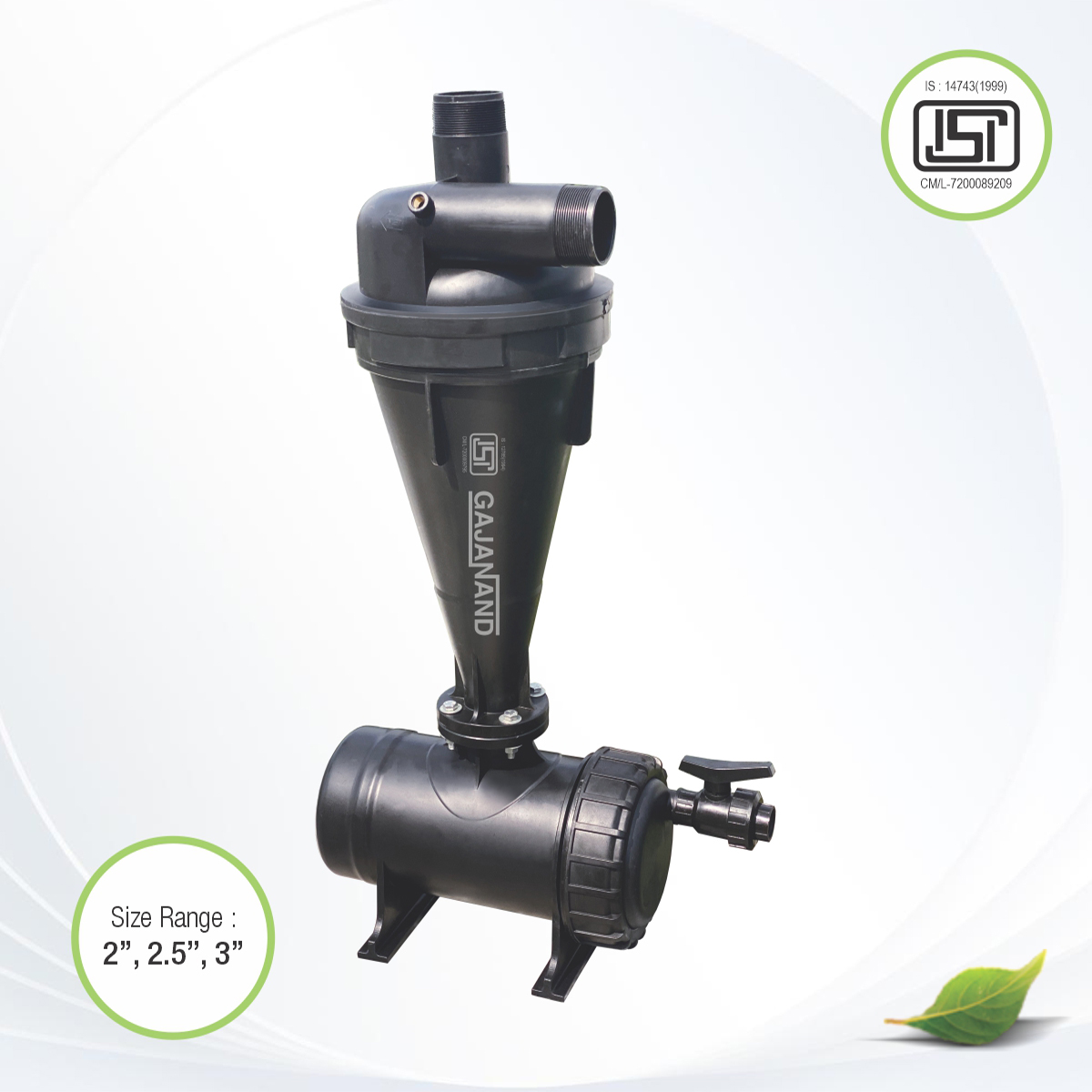

Hydrocyclone Sand Filter (Threaded)
Advantages OF Hydrocyclone Filters
- High Efficiency
- Uniform flow rate
- Cost-Efficient
- Non-corrosive and Rustproof built
- Weather-Resistant
- Simple efficient design
- Zero maintenance
- Easy to handle Easy to install
- No moving parts
- Highly efficient performance under low/high/working pressure
APPLICATION
- Drip irrigation systems
- Sprinkler irrigation systems
- Water Treatment Units for Agriculture
- Landscape Irrigation
- Agricultural Pump Protection
- Borewell & Tube Well Water
| SIZE (INCH / mm) | 2" / (50) | 2½" / (65) | 3" / (75) |
|---|---|---|---|
| Nominal Operation Pressure (kg / cm²) | 4.0 | 4.0 | 4.0 |
| Maximum Allowable Pressure Drop (kg / cm²) | 0.8 | 0.8 | 0.8 |
| No. | Description | Materials |
|---|---|---|
| 1 | Upper Filter Housing | GFPP |
| 2 | Lower Filter Housing | GFPP |
| 3 | Fixed Lock | GFPP |
| 4 | Fixed Locking Pin | GFPP |
| 5 | O Ring (Upper) | EPDM |
| 6 | O Ring (Lower) | EPDM |
| 7 | Neck | GFPP |
| 8 | Nuts | SS |
| 9 | O Ring | EPDM |
| 10 | Flush Pipe | GFPP |
| 11 | Flush Pipe O Ring | EPDM |
| 12 | Gauge Ports Seal | LTB-3/4 |
FEATURES OF Hydrocyclone Filters
- Requires low maintenance.
- The Conical design of the Hydrocyclone filter accelerates velocity, boosting centripetal force, and maximizing separation.
- GAJANAND HYDROCYCLONE FILTERS are simple to use, operate, and handle because they have no moving parts.
- There is no head loss during the separating procedure.
- Provision of a specialized neck design with increased thickness around the neck region to protect against wear and tear caused by the continuous separation process.
- To reduce the frequent removal of sludge, large sedimentation tanks can be used.
- The use of polypropylene and fiberglass reinforcing extends the life of the product.
Hydrocyclone Filters for Irrigation are specially designed to remove sand, silt, and other heavy suspended particles from irrigation water using centrifugal force. The conical design accelerates water velocity, creating a strong vortex that separates solid particles and directs them to the collection chamber, ensuring clean water output.
Manufactured using high-quality, durable materials, hydrocyclone filters have no moving parts, making them easy to operate, highly reliable, and virtually maintenance-free. They are ideal for use in drip irrigation, sprinkler irrigation, and agricultural water filtration systems where high sand content is present.
These filters significantly reduce clogging in emitters and pipelines, extend system life, and improve overall irrigation efficiency. With low head loss and high separation efficiency, hydrocyclone filters are suitable for borewell, open well, and canal water sources. A reinforced neck design provides extra protection against wear and tear, ensuring long-lasting performance even under continuous operation.
