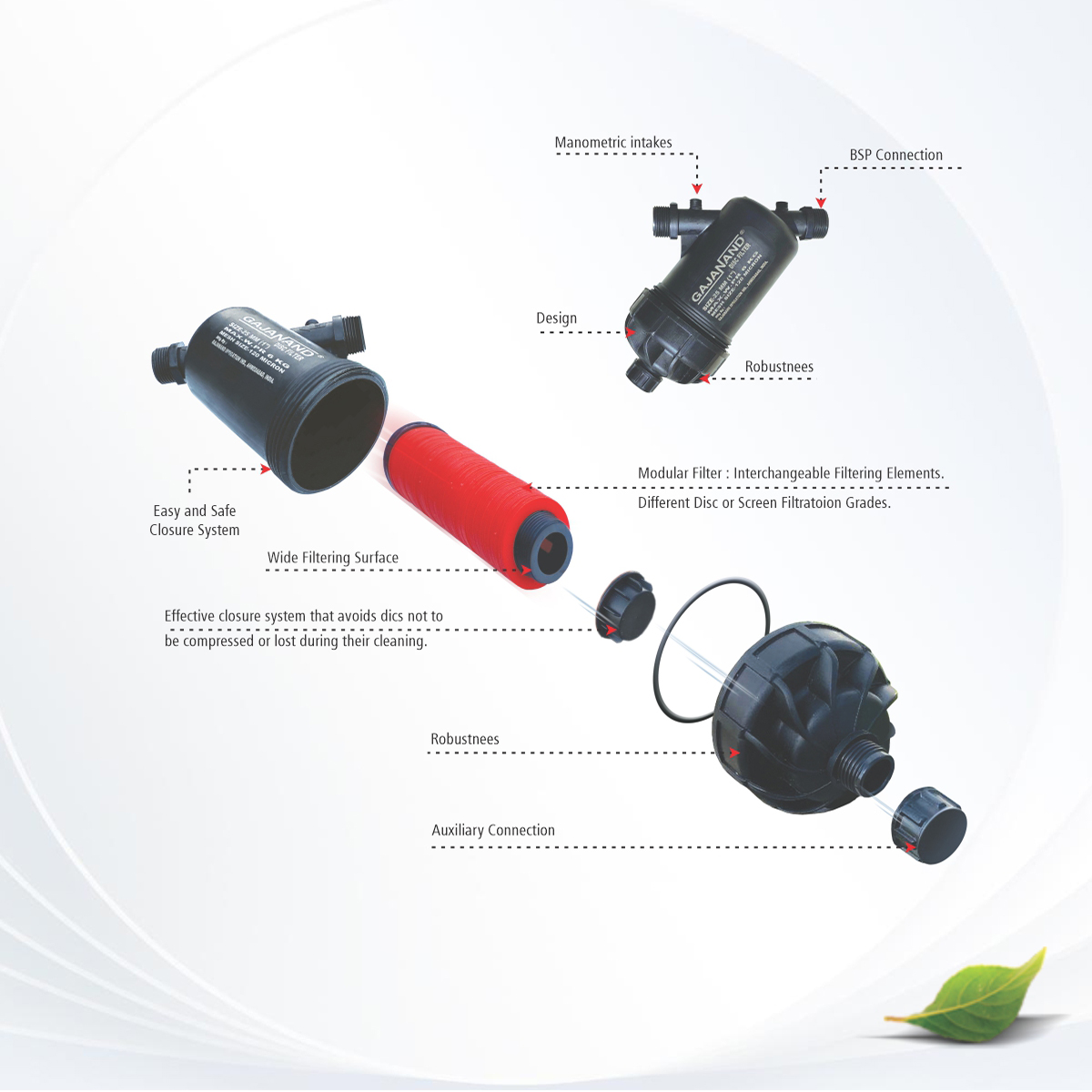

Y Type Screen Filters & Dis Filters
High-performance Y type screen filters and disc filters designed to protect irrigation systems from sand, silt, and impurities. Ideal for drip and sprinkler irrigation, these filters ensure efficient filtration, reduced clogging, and long-lasting system performance.
Advantages
- UV resistivity protects from sunlight
- Non-corrosive and rust proof built
- Weather resistant
- Simple design
- No moving parts
- Zero maintenance
- Highly efficient performance underlow/high or working pressure
- Provides uniform injection rate
- Cost effective solution
- Easy to handle, install because of its small size and light-weight design
| Model No. | GI-DF25 | GI-DF40 |
|---|---|---|
| Size | 1" | 1½" |
| Max. Working Pressure | 4 kg/cm² | 4 kg/cm² |
| Flow Rate Recommended | 6 m³/h | 14 m³/h |
| Flow Rate Range | 4–7 m³/h | 10–15 m³/h |
| Surface Area of Filtration | 180 cm² | 300 cm² |
| Cartridge Diameter | 58 mm | 58 mm |
| Cartridge Length | 150 mm | 170 mm |
Y Type Screen Filters and Disc Filters are essential components for maintaining clean and efficient irrigation systems. Designed to remove sand, silt, algae, and suspended particles from water, these filters help prevent clogging of drippers and sprinklers while ensuring uniform water flow.
Manufactured using durable, corrosion-resistant materials, Y type screen filters offer compact design and easy maintenance, making them suitable for small to medium irrigation setups. Disc filters provide advanced filtration with stacked grooved discs that effectively trap organic and inorganic impurities, making them ideal for water sources with higher contamination levels.
Widely used in drip irrigation, sprinkler irrigation, greenhouse systems, orchards, and agricultural fields, these filtration solutions improve irrigation efficiency and extend the life of irrigation components. Easy to install and compatible with standard HDPE and LDPE pipelines, Y Type Screen Filters & Disc Filters Irrigation systems help reduce maintenance costs, conserve water, and support sustainable agricultural practices.
